Features

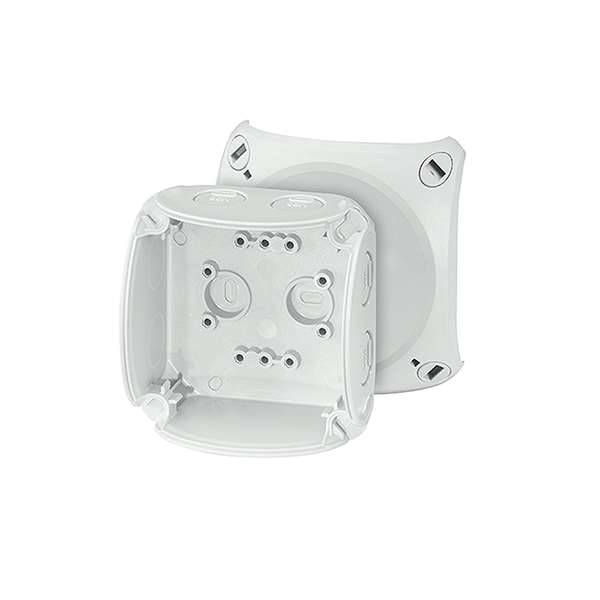

OEM Part Number: KF 0200 G
- Without terminals
- Weatherproof resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
- Saltwater-proof
- Offshore applications
- Lid fasteners sealable without accessories
- Retaining strap and external brackets for wall fixing included
- Colour: Grey, RAL 7035
*IP68 rating achieved when used in conjunction with STORM Gland
Rated insulation voltage | Ui = 1000 V a.c./d.c. |
Material | PC-GFS (polycarbonate) |
Degree of protection | IP 66 / IP 67 / IP 69 IP 67, temporary submersion IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m |
Mounting width | 74mm |
Mounting height | 74mm |
Max. installation depth | 47mm |

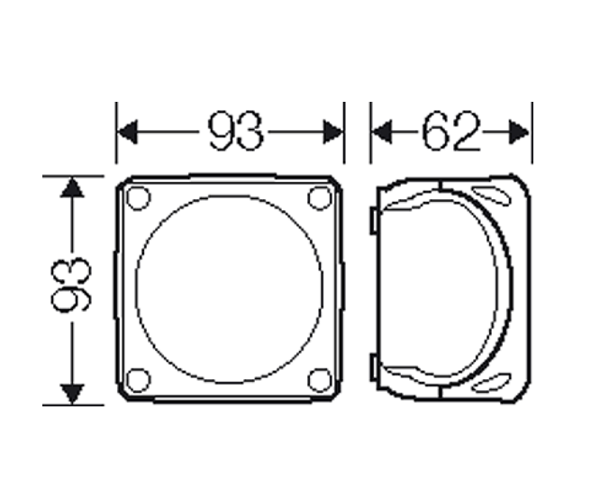

Width | 93mm |
Height | 93mm |
Depth | 62mm |
Weight | 0.11kg |
In accordance with | IEC 60670-22 |
In accordance with | DNV GL - Certificate No: TAE00000EE |
