Features
OEM Part Number: DK 0600 B
- Without terminals

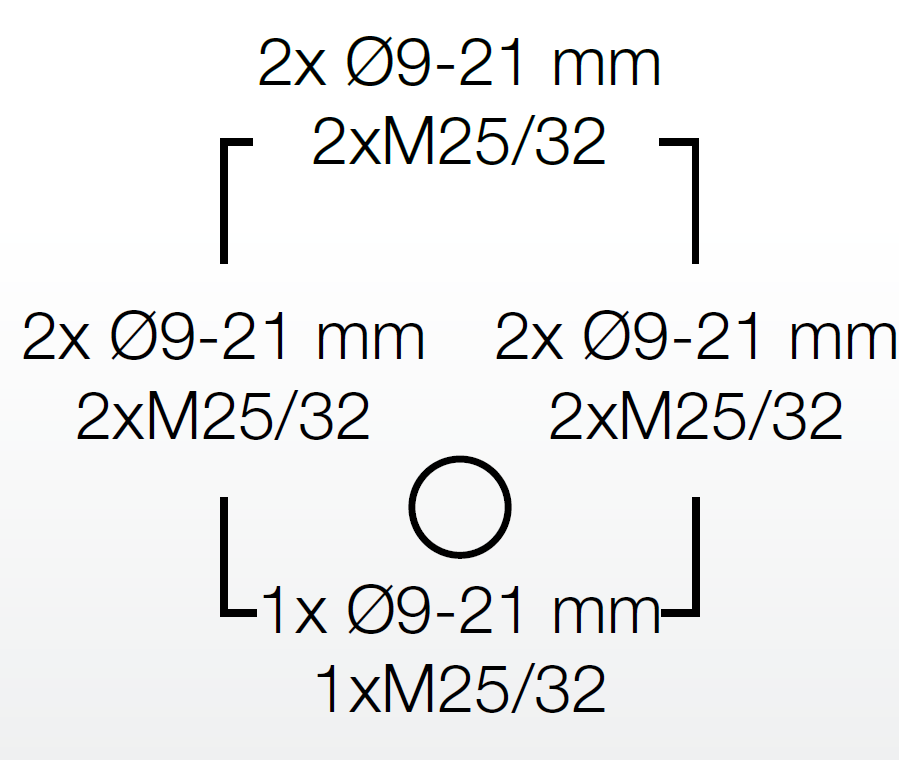

- With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0mm
- With one cable entry in the bottom, sealing range Ø 9.0-20.0mm
- Lid fasteners sealable without accessories
- Retaining strap and external brackets for wall fixing included
- Colour: Black, RAL 9011
- To close opened membranes use grommets type EDK. Degree of protection = IP 66.
| Rated insulation voltage | Ui = 1000 V a.c./d.c. |
| Material | PP (polypropylene) |
| Degree of protection | IP 66 |
| Mounting width | 102mm |
| Mounting height | 102mm |
| Max. installation depth | 62mm |

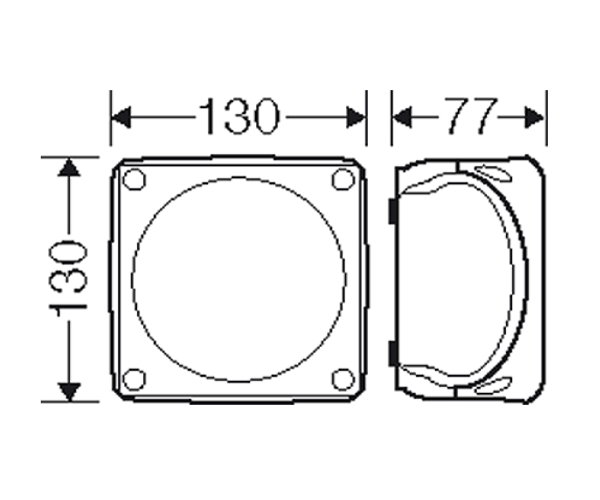

| Width | 130mm |
| Height | 130mm |
| Depth | 77mm |
| Weight | 0.173kg |
| In accordance with | IEC 60670-22 |
