Heatshrink Handi-Box
Features
An easier way to buy smaller quantities of standard grade heatshrink.

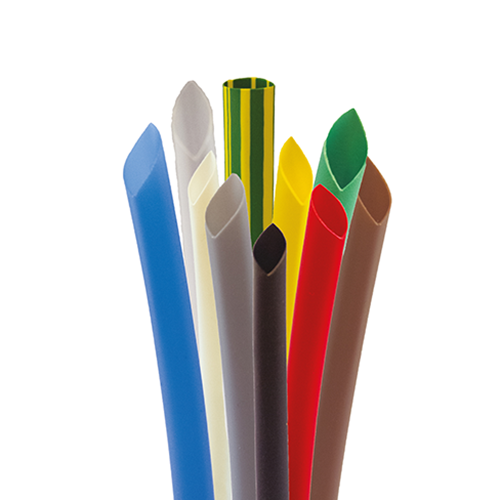

incorporating colours - Red, Yellow, Blue, Green/Yellow, Black , Grey, White, Clear and Brown.
2:1 Shrink Ratio
SG.- Standard Grade Polyolefin, 2:1 shrink ratio, shrink with hot airgun or naked flame, flexible, excellent insulation properties, easily printed on, without adhesive and does not melt-resistant to cold flow.
Application:
SG is a flexible, flame-retardant heat shrinkable polyolefin tubing designed for a wide range of applications such as insulation, marking, strain relief and mechanical protection.
Shrinking Properties:
• Radial shrinkage: 50% min
• Longitudinal shrinkage: 5% max
• Tubing has ability to shrink at comparatively low temperatures of 100°C
• 2:1 shrink ratio
• Operating temperature: -55°C to 125°C
• Self-extinguishing
Box Quantity (M)
SG3.2*-HB - (15)
SG4.8*-HB - (10)
SG6.4*-HB - (10)
SG9.5*-HB - (10)
SG12.7*-HB - (10)
SG19*-HB - (5)
SG25*-HB (5)
*Suffix colour required.
Specifications:
• UL224 125°C 600V VW-1
• CSA C22.2 No. 198 125°C 600V
• RoHS Compliant
