Earth Bars and Disconnecting Links

Features

Bar: 50mm x 6mm hard drawn copper bar, having 99.9% purity

Base: uPVC

Fitting: M10 hexagon head screws

Tested to: IEC 62561-1:2018

Amps: 700-800

Downloads

Earth Bar and Lattice

See product catalogue (in the 'Download' section) for the latest product details

Product Code	Description	Pack Qty	EAN	TSI Code

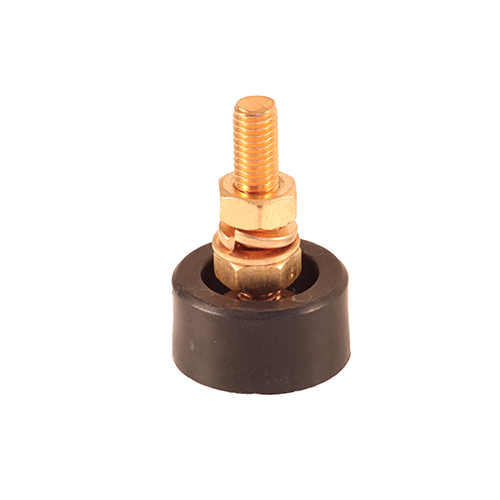

IBR1	Black Round Insulator C/W M10 Nuts		5050291105033	N/A

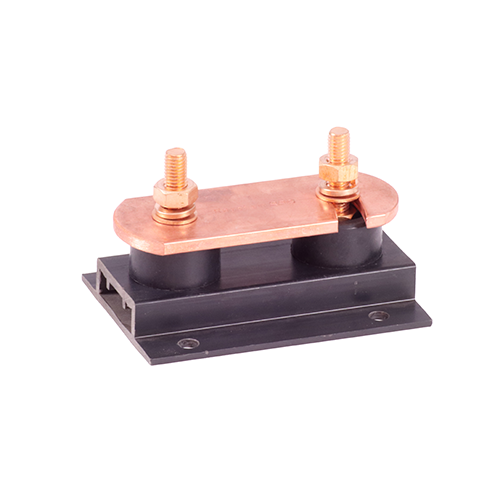

EBDL	Earth Disconnecting Link	1	5050291097925	N/A
EB-4	4 Way Earth Bar - 300mm Length	1	5050291097932	N/A
EB4-S	4-Way Earth Bar - Single Disconnecting Link - 475mm Length	1	5050291097949	N/A

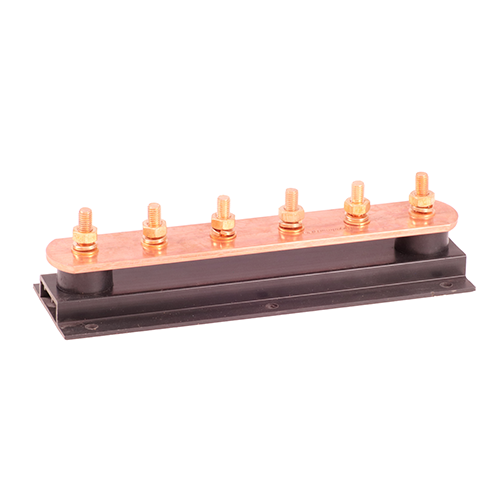

EB-6	6 Way Earth Bar - 400mm Length	1	5050291097956	N/A
EB6-S	6-Way Earth Bar - Single Disconnecting Link - 475mm Length	1	5050291097963	N/A
EB6-T	6 Way Earth Bar - Twin Disconnecting Link - 550mm Length	1	5050291097970	N/A

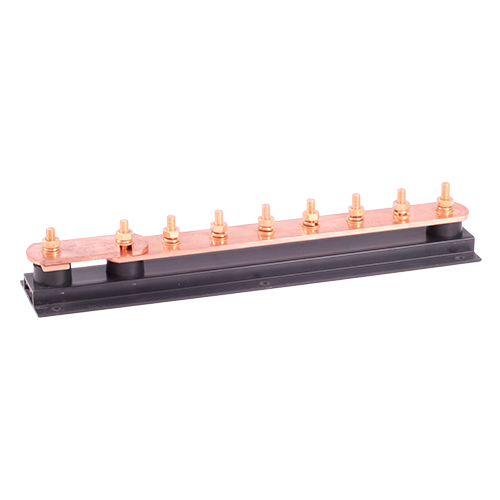

EB8-S	8-Way Earth Bar - Single Disconnecting Link - 575mm Length	1	5050291097987	N/A
EB8-T	8-Way Earth Bar - Twin Disconnecting Link - 650mm Length	1	5050291097994	N/A

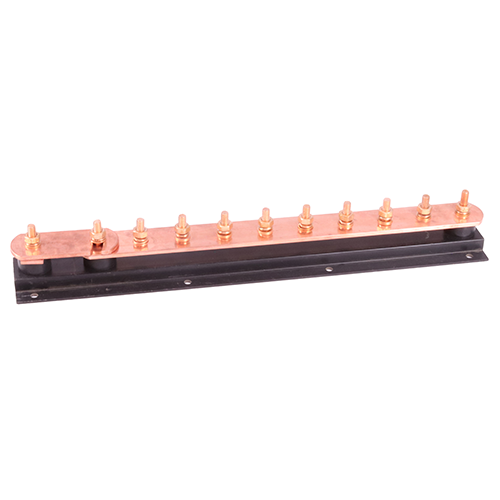

EB10-S	10-Way Earth Bar - Single Disconnecting Link - 725mm Length	1	5050291098007	N/A
EB10-T	10-Way Earth Bar - Twin Disconnecting Link - 800mm Length	1	5050291098014	N/A
EB12-S	12-Way Earth Bar - Single Disconnecting Link - 825mm Length	1	5050291098021	N/A
EB12-T	12-Way Earth Bar - Twin Disconnecting Link - 900mm Length	1	5050291098038	N/A
