28RFP
28RFP
28RFP
  • 28RFP
  • 28RFP
  • 28RFP

Female Push-On Terminals

Features

Material: Brass - Tin Plated

Insulation: Polyvinyl Chloride

Max. elec. rating: ● 10 amp, ● 15 amp, ● 24 amp

300 volts 75°c

Vibration resistant

RoHS compliant

Pack Quantity: 100

Downloads

See product catalogue (in the 'Download' section) for the latest product details

Product CodeDescriptionPack QtyEANTSI Code

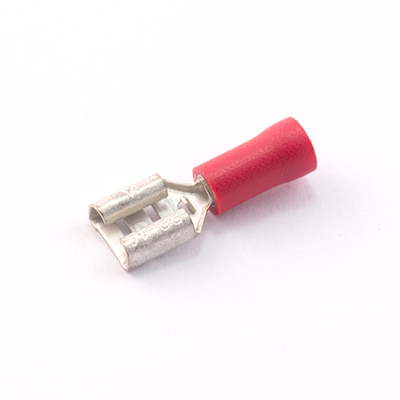

28RFPFemale Push-On Terminal Red 2.8 x 0.5mm10050502910245321985519
28RFPXFemale Push-On Terminal Red 2.8 x 0.8mm10050502910245631985577
48RFPFemale Push-On Terminal Red 4.8 x 0.5mm10050502910115871985522
48RFPXFemale Push-On Terminal Red 4.8 x 0.8mm10050502910116001989599
63RFPFemale Push-On Terminal Red 6.3 x 0.8mm10050502910110681985535

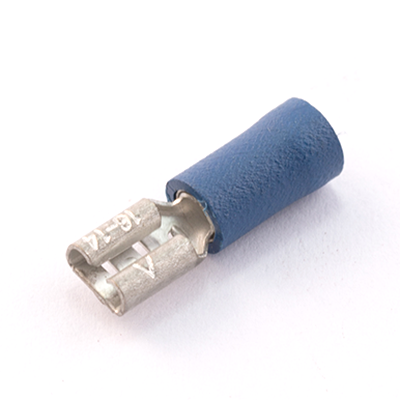

28BFPXFemale Push-On Terminal Blue 2.8 x 0.8mm1005050291047975402812032
48BFPFemale Push-On Terminal Blue 4.8 x 0.5mm10050502910115631983197
48BFPXFemale Push-On Terminal Blue 4.8 x 0.8mm1005050291025928402812087
63BFPFemale Push-On Terminal Blue 6.3 x 0.8mm10050502910110751983207

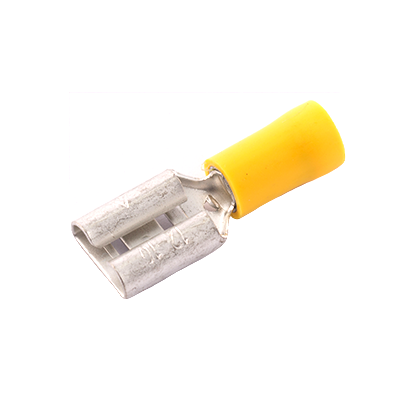

63YFPFemale Push-On Terminal Yellow 6.3 x 0.8mm10050502910110821989007
95YFPFemale Push-On Terminal Yellow 9.5 x 1.2mm10050502910283251989010
