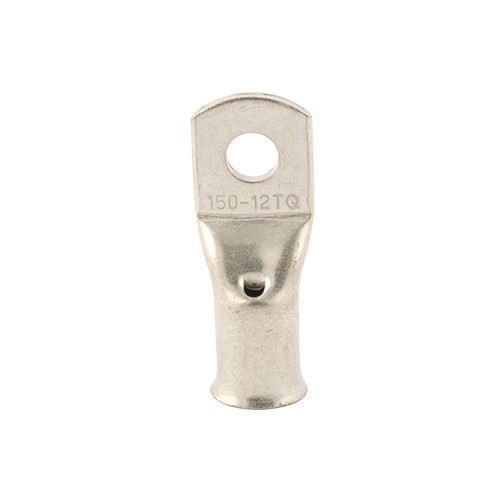

1.5mm - 6mm T Range - Copper Tube Terminals

Features

Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor
Internal barrel diameters suit standard cables as defined in BS 6360
All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

All SWA Copper Tube Terminals are despatched in sealed SWA branded bags to ensure quality & traceability for our customers.

Product Code	Description	Pack Qty	EAN	TSI Code
1.5-4 T	Copper Tube Terminal 1.5mm X M4 Hole		5050291066808	388798526
1.5-5 T	Copper Tube Terminal 1.5mm X M5 Hole		5050291066815	388798539
1.5-6 T	Copper Tube Terminal 1.5mm X M6 Hole	1	5050291066822	402812524
2.5-4 T	Copper Tube Terminal 2.5mm X M4 Hole	1	5050291066914	N/A
2.5-5 T	Copper Tube Terminal 2.5mm X M5 Hole	1	5050291066921	N/A
2.5-6 T	Copper Tube Terminal 2.5mm X M6 Hole	1	5050291066938	N/A
4-4 T	Copper Tube Terminal 4mm X M4 Hole	1	5050291066945	N/A
4-5 T	Copper Tube Terminal 4mm X M5 Hole	1	5050291066952	N/A
4-6 T	Copper Tube Terminal 4mm X M6 Hole	1	5050291066969	N/A
6-4 T	Copper Tube Terminal 6mm X M4 Hole	1	5050291066976	N/A
6-5 T	Copper Tube Terminal 6mm X M5 Hole	1	5050291066983	N/A
6-6 T	Copper Tube Terminal 6mm X M6 Hole	1	5050291066990	N/A
6-8 T	Copper Tube Terminal 6mm X M8 Hole	1	5050291067003	N/A
6-10T	Copper Tube Terminal 6mm X M10 Hole	1	5051178119983	N/A
