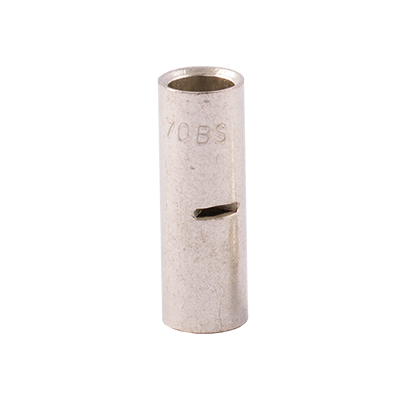

Copper Tube Butt Splices

Features

Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor
Internal barrel diameters suit standard cables as defined in BS 6360
All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

Approved to: BS EN 61238-1:2003 Grade A

Certified by: Dekra International

For recommended tooling refer to TQ terminals

Product Code	Description	EAN	TSI Code
1.5 BS	Copper Tube Butt Splice 1.5mm²	5050291064699	381070270
2.5 BS	Copper Tube Butt Splice 2.5mm²	5050291064705	N/A
4 BS	Copper Tube Butt Splice 4mm²	5050291064712	N/A
6 BS	Copper Tube Butt Splice 6mm²	5050291064729	N/A
10 BS	Copper Tube Butt Splice 10mm²	5050291064736	1983388
16 BS	Copper Tube Butt Splice 16mm²	5050291064743	1983401
25BS	Copper Tube Butt Splice 25mm²	5050291024426	1983427
35BS	Copper Tube Butt Splice 35mm²	5050291025188	1983443
50BS	Copper Tube Butt Splice 50mm²	5050291022170	1983469
70BS	Copper Tube Butt Splice 70mm²	5050291023054	1983498
95BS	Copper Tube Butt Splice 95mm²	5050291023115	1983524
120BS	Copper Tube Butt Splice 120mm²	5050291023009	1983553
150BS	Copper Tube Butt Splice 150mm²	5050291023351	1983582
185BS	Copper Tube Butt Splice 185mm²	5050291023757	1983618
240BS	Copper Tube Butt Splice 240mm²	5050291024174	1983647
300BS	Copper Tube Butt Splice 300mm²	5050291024747	1983663
400BS	Copper Tube Butt Splice 400mm²	5050291025638	1983676
500BS	Copper Tube Butt Splice 500mm²	5050291026529	1983689
630BS	Copper Tube Butt Splice 630mm²	5050291027007	1983692
