Insulated Bootlace Ferrules Twin Entry

Features

Material: Electrolytic Copper - purity grade 99.9%

Insulation: Polyamide 66

Technical Standards: DIN 462284/4 (insulated) DIN 46228/1 (uninsulated)

Resistance to external agents - good resistance to bases and weak acids . Limited resistance to strong oxidising acids, oil and mineral oils. Not resistant to chlorinated solvents.

Polypropylene

  • Humidity absorption: 0
  • Working Temperature : -40°C to +105°C
  • During installation: From 0°c to +60°C
  • Max. admissible point: +120°C for short periods
  • Melting point: +165°C
  • Limit oxygen index (LOI): 17%

Pack Quantity: 100

Downloads

See product catalogue (in the 'Download' section) for the latest product details

Product CodeDescriptionPack QtyEANTSI Code

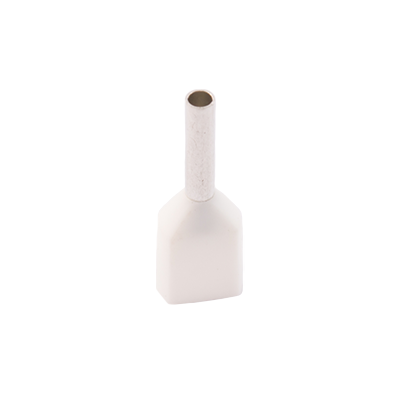

0.50-8IBLF/2Insulated Bootlace Ferrule - Twin Entry White 0.5mm² 1005050291031943381068224

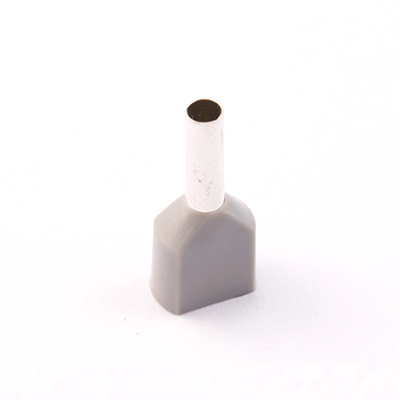

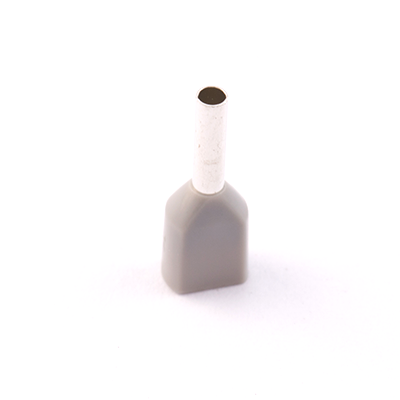

0.75-8IBLF/2.Insulated Bootlace Ferrule - Twin Entry Grey 0.75mm² 1005050291053020381068237

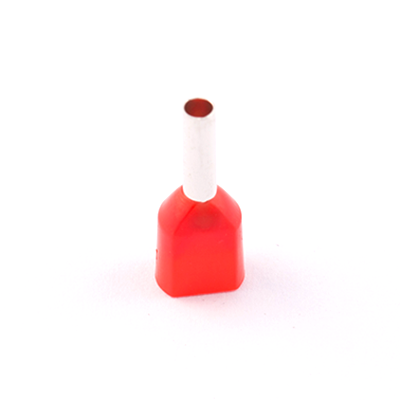

1.0-8IBLF/2Insulated Bootlace Ferrule - Twin Entry Red 1.0mm² 1005050291022453381068457

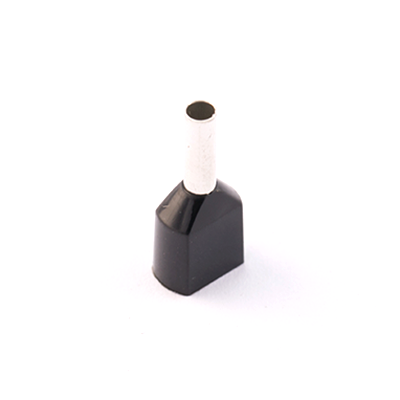

1.5-8IBLF/2Insulated Bootlace Ferrule - Twin Entry Black 1.5mm²1005050291022491381068486

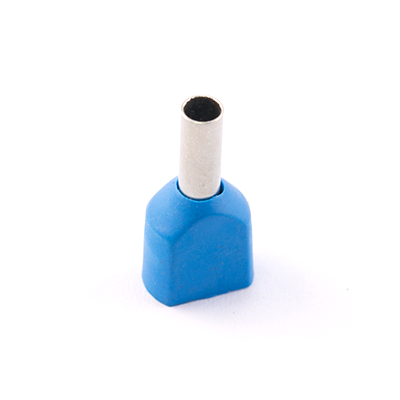

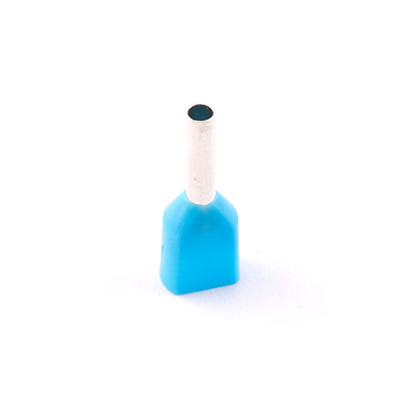

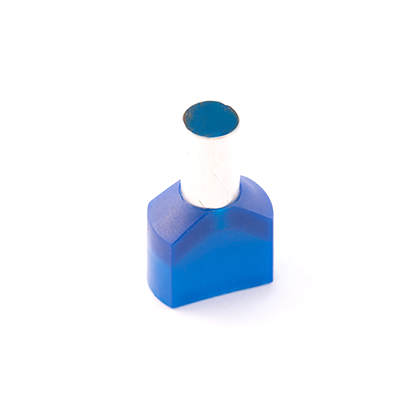

2.5-8IBLF/2Insulated Bootlace Ferrule - Twin Entry Blue 2.5mm² 1005050291023894381068499
4.0-9IBLF/2Insulated Bootlace Ferrule - Twin Entry Grey 4.0mm²1005050291025591381068538

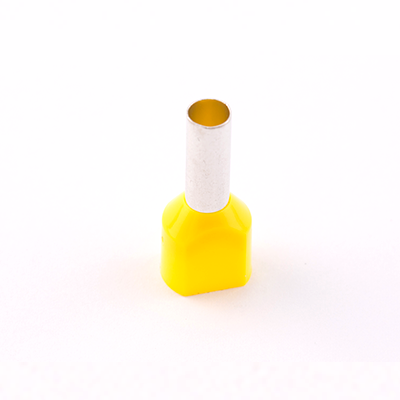

6.0-14IBLF/2Insulated Bootlace Ferrule - Twin Entry Yellow 6mm² 1005050291043625388798490

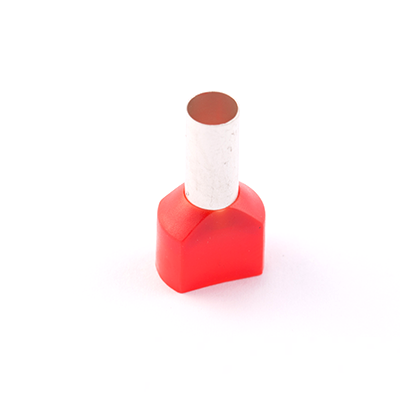

10-14IBLF/2Insulated Bootlace Ferrule - Twin Entry Red 10mm²1005050291049641388798500
16-14IBLF/2Insulated Bootlace Ferrule - Twin Entry Blue 16mm²1005050291053822402812278
