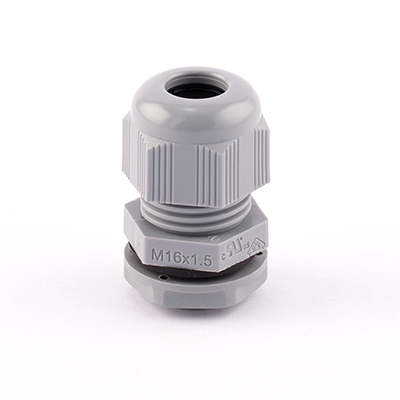

CG-LNM 20SB-ALT
  • CG-LNM 20SB-ALT

ALT Polyamide Glands

Features

Polyamide Glands

Material: Polyamide 6 (halogen free)
Protection class: IP68 5 bar
Operating temp range: -30°C to +80°C
Intermittent temp: Up to +150°C intermittent
Seal: Neoprene
Properies of plastic cable glands:
Gross density DIN 53457: 1.14g/cm³
Chemical characteristics:
Resistant to:
Acids – high concentrate (conditionally resistant)
Acids – low concentrate
Fuel DIN gasoline/super
Fuel DIN diesel
Mineral oil
Vegetable oils and fats

Downloads

See product catalogue (in the 'Download' section) for the latest product details

Product CodeDescriptionPack QtyEANTSI Code
CG/LNM 20SB-ALTPolyamide Cable Gland 20mm Black (Small)105050291067461N/A
CG/LNM 20SG-ALTPolyamide Cable Gland 20mm Grey (Small)105050291067454N/A
CG/LNM 20SR-ALTPolyamide Cable Gland 20mm Red (Small)105050291067508N/A
CG/LNM 20SW-ALTPolyamide Cable Gland 20mm White (Small)105050291067515N/A
CG/LNM 20B-ALTPolyamide Cable Gland 20mm Black105050291068895N/A
CG/LNM 20G-ALTPolyamide Cable Gland 20mm Grey105050291067492N/A
CG/LNM 20R-ALTPolyamide Cable Gland 20mm Red105050291067485N/A
CG/LNM 20W-ALTPolyamide Cable Gland 20mm White105050291067478N/A
CG/LNM 25B-ALTPolyamide Cable Gland 25mm Black105050291067225N/A
CG/LNM 25G-ALTPolyamide Cable Gland 25mm Grey105050291067317N/A
CG/LNM 25R-ALTPolyamide Cable Gland 25mm Red105050291067256N/A
CG/LNM 25W-ALTPolyamide Cable Gland 25mm White105050291067348N/A
