Consumer Unit Glands

Features

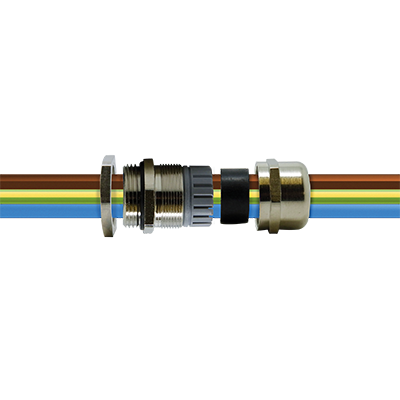

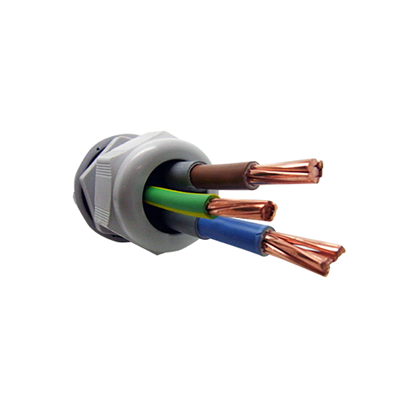

Consumer Unit Gland Range

All consumer units must now comply with the 18th Edition Wiring Regulations to BS 7671:2018. SWA’s new range of glands features specially designed inserts, providing an effective seal against flames.
Available in both metal and nylon versions, it covers the full spectrum of applications, including meter tails, earth tails and twin & earth cables.

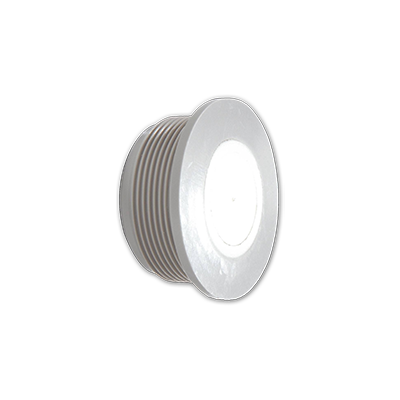

Membrane Cable Grommets

Application: Round membrane grommet in TPE to clip in that allows single cables, flat cables or several cables of small diameters to pass through it.
Materials: Polyethylene thermoplastic elastomer (TPE)
Colour: Light grey (RAL 7035)
Protection rating: IP 66 according EN 60529
Temp rating: -40°C to +80°C

Downloads

See product catalogue (in the 'Download' section) for the latest product details

Product CodeDescriptionPack QtyEANTSI Code
CUGN-TYPE1Nylon M32 Gland for 2 X 16mm Tails and 1 X 16mm Earth Tail c/w Insert Grey5050291006286401615683
CUGN-TYPE2Nylon M40 Gland for 2 X 25mm Tails and 1 X 16mm Earth Tail c/w Insert Grey5050291006309401615722
CUGB-TYPE4Brass M40 Gland for 2 X 25mm Tails and 1 X 16mm Earth Tail c/w Insert5050291006279401615751
CUGN-TYPE5Nylon M20 Gland for 1 X 1-1.5mm Flat Twin and Earth Cable c/w Insert Grey5050291006316401615764
CUGB-TYPE3Brass M32 Gland for 2 X 16mm Tails and 1 X 16mm Earth Tail c/w Insert5050291006262401615748
CUGN-TYPE6Nylon M20 Gland for 1 X 2.5-4mm Flat Twin and Earth Cable c/w Insert Grey5050291006323401615777
CUGN-TYPE7Nylon M20 Gland for 1 X 6mm Flat Twin and Earth Cable c/w Insert Grey5050291006330401615780
CUGN-TYPE8Nylon M25 Gland for 2 X 2.5mm Flat Twin and Earth Cable c/w Insert Grey5050291006347401615793
CUGN-TYPE9Nylon M32 Gland for 1 X 10mm Flat Twin and Earth Cable c/w Insert Grey5050291006354401615803
CUGN-TYPE10Nylon M40 Gland for 1 X 16mm Flat Twin and Earth Cable c/w Insert Grey5050291006293401615816
CUGB-TYPE11Brass M20 Gland for 1 X 1-1.5mm Flat Twin and Earth Cable c/w Insert5050291006200401615829
CUGB-TYPE12Brass M20 Gland for 1 X 2.5-4mm Flat Twin and Earth Cable c/w Insert5050291006217401615832
CUGB-TYPE13Brass M20 Gland for 1 X 6mm Flat Twin and Earth Cable c/w Insert5050291006224401615845
CUGB-TYPE14Brass M25 Gland for 2 X 2.5mm Flat Twin and Earth Cable c/w Insert5050291006231401615858
CUGB-TYPE15Brass M32 Gland for 1 X 10mm Flat Twin and Earth Cable c/w Insert5050291006248401615900
CUGB-TYPE16Brass M40 Gland for 1 X 16mm Flat Twin and Earth Cable c/w Insert5050291006255401615955
CUMG20Membrane Grommet M20105050291006361402823461
CUMG25Membrane Grommet M25105050291006378402823474
CUMG32Membrane Grommet M3255050291006385402823490
