M16MXM20F-EEXE
  • M16MXM20F-EEXE

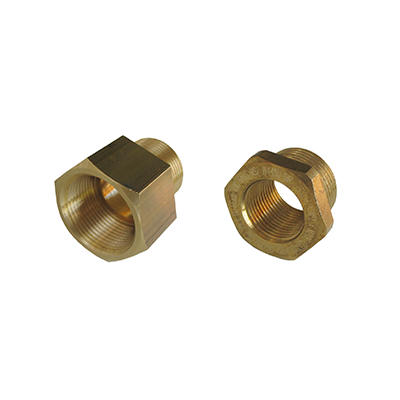

Adaptors and Reducers

Features

Application: SWA brass adaptors and reducers provide an effective method of connection between dissimilar thread types (Metric, PG, ET, NPT or BSP) or sizes in hazardous areas. It should be noted that no more than one adaptor or reducer should be used at any one time.

ATEX Certificate No: Reducer TI17ATEX825X, Adaptor TI21ATEX1121X

Protection class: II2 GD Ex db IIC Gb / Ex e IIC Gb Ex tb IIIC Db

Material: Brass BS 2874 :1985 CZ121​

Downloads

See product catalogue (in the 'Download' section) for the latest product details

Product CodeDescriptionPack QtyEANTSI Code
M16MXM20F/EEXEBrass Adaptor 16-20mm5050291012027403449640
M20MXM16F/EEXEBrass Adaptor 20-16mm15050291012072387327684
M20MXM25F/EEXEBrass Adaptor 20-25mm15050291012096387327723
M25MXM20F/EEXEBrass Adaptor 25-20mm15050291012157387327781
M25MXM32F/EEXEBrass Adaptor 25-32mm15050291105040N/A
M32MXM20F/EEXEBrass Adaptor 32-20mm15050291012225387328308
M32MXM25F/EEXEBrass Adaptor 32-25mm15050291012249387328311
M40MXM20F/EEXEBrass Adaptor 40-20mm15050291012317387328340
M40MXM25F/EEXEBrass Adaptor 40-25mm15050291012331387328382
M40MXM32F/EEXEBrass Adaptor 40-32mm15050291012355387328421
M50MXM20F/EEXEBrass Adaptor 50-20mm15050291012423403449679
M50MXM25F/EEXEBrass Adaptor 50-25mm15050291012447387328489
M50MXM32F/EEXEBrass Adaptor 50-32mm15050291012461387328502
M50MXM40F/EEXEBrass Adaptor 50-40mm15050291012478387328544
M63MXM20F/EEXEBrass Adaptor 63-20mm15050291105057N/A
M63MXM25F/EEXEBrass Adaptor 63-25mm15050291105064N/A
M63MXM32F/EEXEBrass Adaptor 63-32mm15050291012553387328573
M63MXM40F/EEXEBrass Adaptor 63-40mm15050291012577387328612
M63MXM50F/EEXEBrass Adaptor 63-50mm15050291012591387328667
PG11MXM20F/EEXEBrass Adaptor PG11-20mm15050291013697387328803
PG13.5MXM20F/EEXEBrass Adaptor PG13.5-20mm15050291013734387328829
PG16MXM20F/EEXEBrass Adaptor PG16-20mm15050291013765403449899
PG16MXM25F/EEXEBrass Adaptor PG16-25mm15050291013789387328845
PG21MXM20F/EEXEBrass Adaptor PG21-20mm15050291013819403449909
PG21MXM25F/EEXEBrass Adaptor PG21-25mm15050291013833387328887
PG21MXM32F/EEXEBrass Adaptor PG21-32mm15050291013857387328900
PG29MXM20F/EEXEBrass Adaptor PG29-20mm15050291013901387328939
1/2NPTMXM20F/EEXEBrass Adaptor 1/2 NPT to 20mm15050291033640N/A
M32MXM40F-NNylon Adaptor 32 - 40mm15050291000369404763121
M32MXM40F-NPBrass Nickle Plated Adaptor 32 - 40mm15050291088428N/A
